Key Takeaways
- The SOLE TT8 treadmill is a commercial-grade machine with dimensions of 82.5"L x 38"W x 66"H when assembled.
- The boxed dimensions are 83"L x 37"W x 17"H, making it essential to have adequate space for unboxing and assembly.
- The treadmill features a spacious running surface of 22" W x 60" L, providing enough room for comfortable workouts.
- It includes a 15.6" touch screen display and a strong motor with a commercial-grade 10lb flywheel.
- Assembly requires basic tools and following a step-by-step guide.
|
At SOLE Fitness, we're proud to offer the best treadmills for your home or gym. These machines are crafted to meet the highest standards of quality and performance, ensuring they are ideal for anyone - from fitness novices to seasoned athletes. Featured Product
|

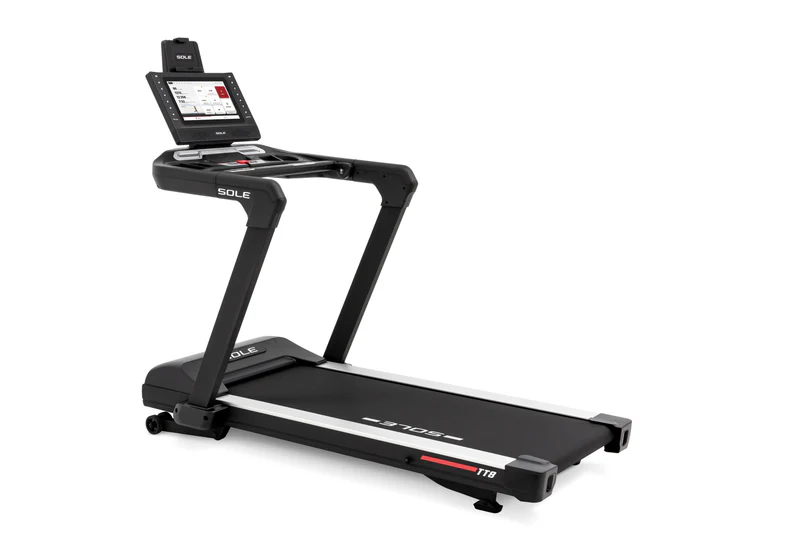

SOLE TT8 Treadmill Dimensions
- Boxed Dimensions: 83"L x 37"W x 17"H
- Assembled Dimensions: 82.5"L x 38"W x 66"H
- Folded Dimensions: N/A since it’s a non-foldable design
- Step Up Height: 8"
- Weight Capacity: 400 lbs
- Item Weight: 326 lbs
- Boxed Weight: 374 lbs
Unlike some treadmills, the SOLE TT8 does not fold. This is due to its commercial-grade build and extensive running surface. Therefore, it's essential to have a dedicated space for this treadmill where it can remain in its fully assembled state.
The large running surface of the SOLE TT8 is one of its standout features. Measuring 22 inches in width and 60 inches in length, it offers adequate space for runners of all sizes. This expansive surface makes for a comfortable and unrestricted running experience, allowing you to focus on your workout without worrying about your footing.
Besides that, the 2-ply belt enhances the feel of the treadmill, providing a smooth and consistent running surface that mimics the experience of running outdoors. This attention to detail in the design of the running surface makes the SOLE TT8 a preferred choice for serious runners.
The SOLE TT8 treadmill is a heavy-duty machine, weighing in at approximately 326 pounds and can support users weighing up to 40 pounds. While this weight contributes to its stability and durability, it also means that moving the treadmill can be challenging. It's recommended to assemble the treadmill in the location where it will be used to avoid the need for relocation.
To make things easier the treadmill does come with transport wheels, making it somewhat easier to move if necessary. However, due to its size and weight, it's best to plan the placement carefully to minimize the need for movement.
Ensure that the area is spacious enough for the treadmill itself and also for safe and comfortable usage. A good rule of thumb is to have at least two feet of clearance on either side and behind the treadmill to allow for easy access and movement.
SOLE TT8 Treadmill Assembly Guide
What's in the Box
Before you begin the assembly, it's important to check that all components are included in the box. The SOLE TT8 package should contain:
- The treadmill base frame
- Console assembly
- Upright bars
- Accessory tray
- Hardware pack (bolts, screws, washers)
- Safety key
- Power cord
- User manual and assembly guide
Ensure that all parts are accounted for before you start the assembly. If any components are missing, contact us for replacements.
Required Tools
To assemble the SOLE TT8 treadmill, you will need the following tools:
- Allen wrench (usually included in the hardware pack)
- Phillips head screwdriver
- Adjustable wrench
- Scissors or box cutter (for unboxing)
Step-by-Step TT8 Assembly Instructions
- Unbox the treadmill: Carefully cut open the box and remove all components. Lay them out on a flat surface.
- Attach the upright bars: Use the provided bolts and an Allen wrench to secure the upright bars to the base frame. Ensure they are tightly fastened.
- Install the console assembly: Place the console on top of the upright bars and secure it using the provided screws. Connect any necessary wiring as per the instructions.
- Attach the accessory tray: Secure the accessory tray to the upright bars using the screws provided.
- Connect the power cord: Plug the power cord into the treadmill and then into a suitable power outlet.
- Insert the safety key: Place the safety key in its designated slot on the console.
Safety Precautions
- Always assemble the treadmill on a flat, stable surface.
- Ensure all bolts and screws are tightly fastened before using the treadmill.
- Keep children and pets away from the assembly area.
- Regularly check and maintain the treadmill to ensure it remains in good working condition.
- Use the safety key to immediately stop the treadmill in case of an emergency.
Additional Setup Tips
After assembling your SOLE TT8 treadmill, there are a few additional steps to ensure optimal performance and safety:
Positioning the Treadmill
Place your treadmill in a well-ventilated area with sufficient space around it. Avoid placing it near walls or furniture that could obstruct movement - position it on a flat surface to prevent any wobbling during use.
Connecting to Power
Once your treadmill is assembled and positioned, the next step is to connect it to a power source. Ensure that the power cord is securely plugged into the treadmill and then into a grounded outlet. Extension cords or power strips aren’t recommended as they can cause voltage drops which may damage the treadmill - best to use a dedicated outlet to avoid any electrical issues.
Calibrating the Treadmill
Calibration allows the treadmill to operate accurately - so that the speed and incline settings are correct.
To calibrate your SOLE TT8, follow the instructions provided in the user manual.
Once calibration is complete, test the treadmill by running it at various speeds and inclines to ensure everything is functioning correctly.
Maintenance Tips
Regular maintenance is key to prolonging the life of your SOLE TT8 treadmill and ensuring it operates smoothly. Here are some essential maintenance tips:
- Wipe Down: After each workout, use a soft cloth to wipe down the treadmill. This removes sweat and dust, which can cause wear over time.
- Lubricate the Belt: Every three months, apply a treadmill lubricant to the running belt. This reduces friction and ensures smooth operation.
- Check Bolts and Screws: Periodically inspect all bolts and screws to ensure they are tight.
- Inspect the Power Cord: Regularly check the power cord for any signs of wear or damage. Replace it if necessary to avoid electrical hazards.
By following these maintenance tips, you can keep your treadmill in top condition and enjoy a smooth and safe workout experience.
Frequently Asked Questions (FAQ)
How do I maintain my treadmill?
Maintaining your treadmill involves regular cleaning, lubrication, and inspection.
Wipe down the treadmill after each use, lubricate the running belt every three months, and periodically check all bolts and screws to ensure they are tight. Additionally, inspect the power cord for any signs of wear or damage.
What should I do if my treadmill stops working?
If your treadmill stops working, first check the power connection and ensure the safety key is in place. If the issue persists, consult the user manual for troubleshooting tips. If you can't resolve the problem, contact our customer service for further assistance. Here are our customer service support options:
- Phone: 866-780-7653
- Email: info@soletreadmills.com
- Online chat: Available on the SOLE Fitness website
Is the SOLE TT8 suitable for high-intensity workouts?
Yes, the SOLE TT8 is designed to handle high-intensity workouts. With its powerful motor, robust build, and advanced features like incline and decline functions, it can accommodate intense running sessions and interval training.
Can I fold the SOLE TT8?
No, the SOLE TT8 does not have a folding mechanism.
Its commercial-grade build and extensive running surface do not allow for folding. That’s why you must have a dedicated space for the treadmill where it can remain in its fully assembled state.
But the treadmill still has transport wheels to roll it away to a new location.
How can I connect my device to the treadmill?
The SOLE TT8 comes with an integrated tablet holder, allowing you to place your smart device on the console.
You can use your device to watch shows, follow workout routines, or use fitness apps while you exercise. Additionally, the treadmill may have Bluetooth connectivity for syncing with fitness apps.
